Fence Architect
For fence contractors · CSI 32 31 13

Shop drawings before the GC asks twice.

Pick the fence, posts, rails, fabric and gates. Get a branded elevation, gate detail and complete submittal set as a PDF, with your logo on every sheet. Then drop in the job plan, mark it up and measure the footage.

Start your free trial See how it works

No install. Runs in Chrome or Edge. Cancel anytime.

Chain linkSwing, slide & overhead gatesBackstops & hoodsWood fences & gatesOrnamental (manufacturer library)PVC (coming soon)Ag / farm (coming soon)Guard rail (coming soon)
CL-EL-01 · ELEVATION
GENERATED FROM 30 SECONDS OF CHOICES
An 8-foot chain link fence elevation detail with top rail, barbed wire, dimensions and a title block, branded with a sample company name.
Cover sheetElevationGate detailBackstop planMarked-up layoutProject notesSpec sheets
SHEET A-0Demo

See it in action

A 90-second tour: build the fence, add gates and a backstop, mark up a site plan or a Google Earth snip, and download the full branded set.

Start your free trial
SHEET A-1Features

Everything a fence submittal needs, in one place

Built by a fence salesman and project manager who got tired of redrawing the same chain link elevation every week.

Elevations that draw themselves

Height, post spacing, post sizes and weights, rails, tension wire, fabric gauge and coating, slats, barbed wire. Change a field and the drawing updates on the spot.

Gates and backstops

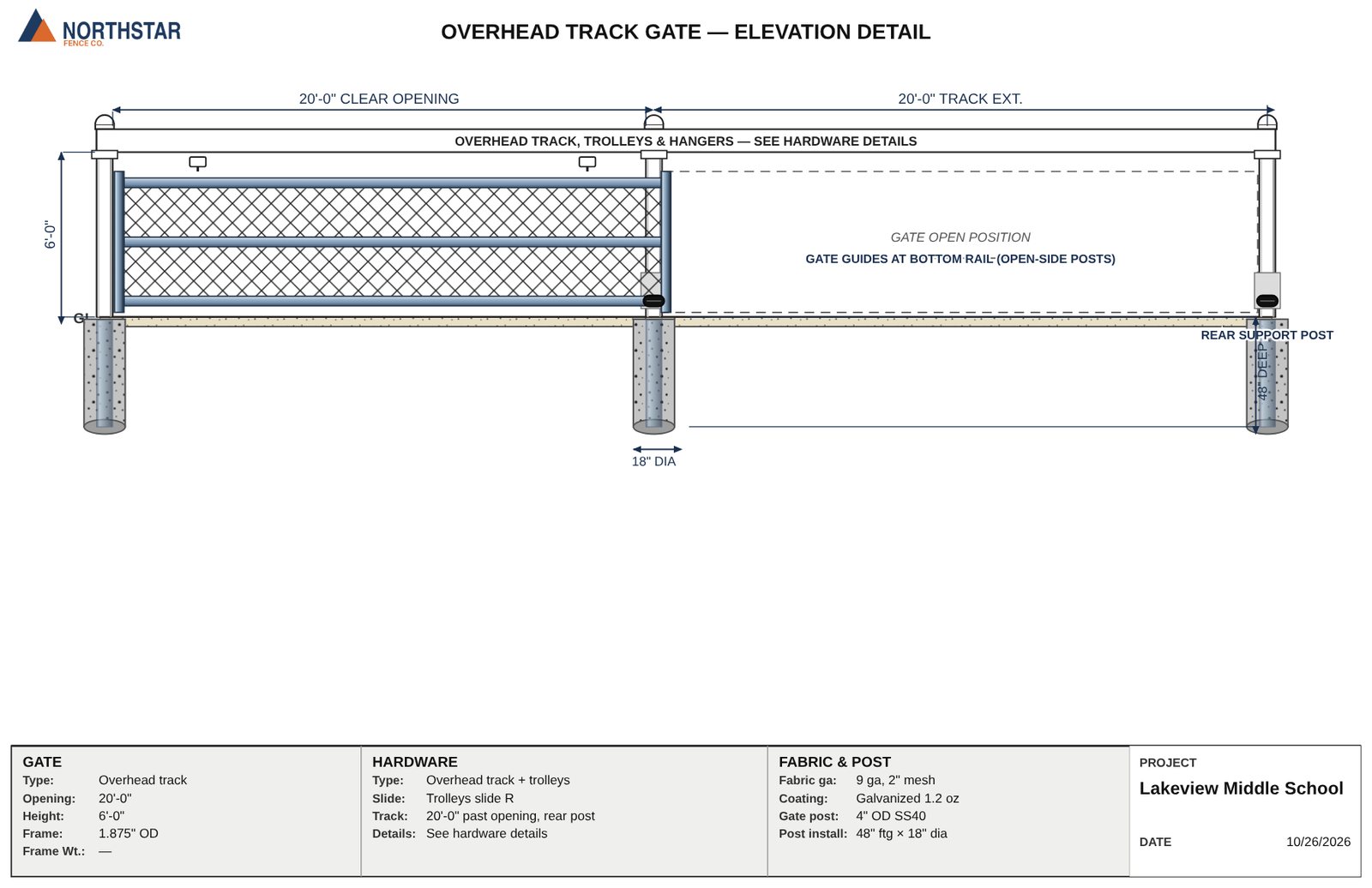

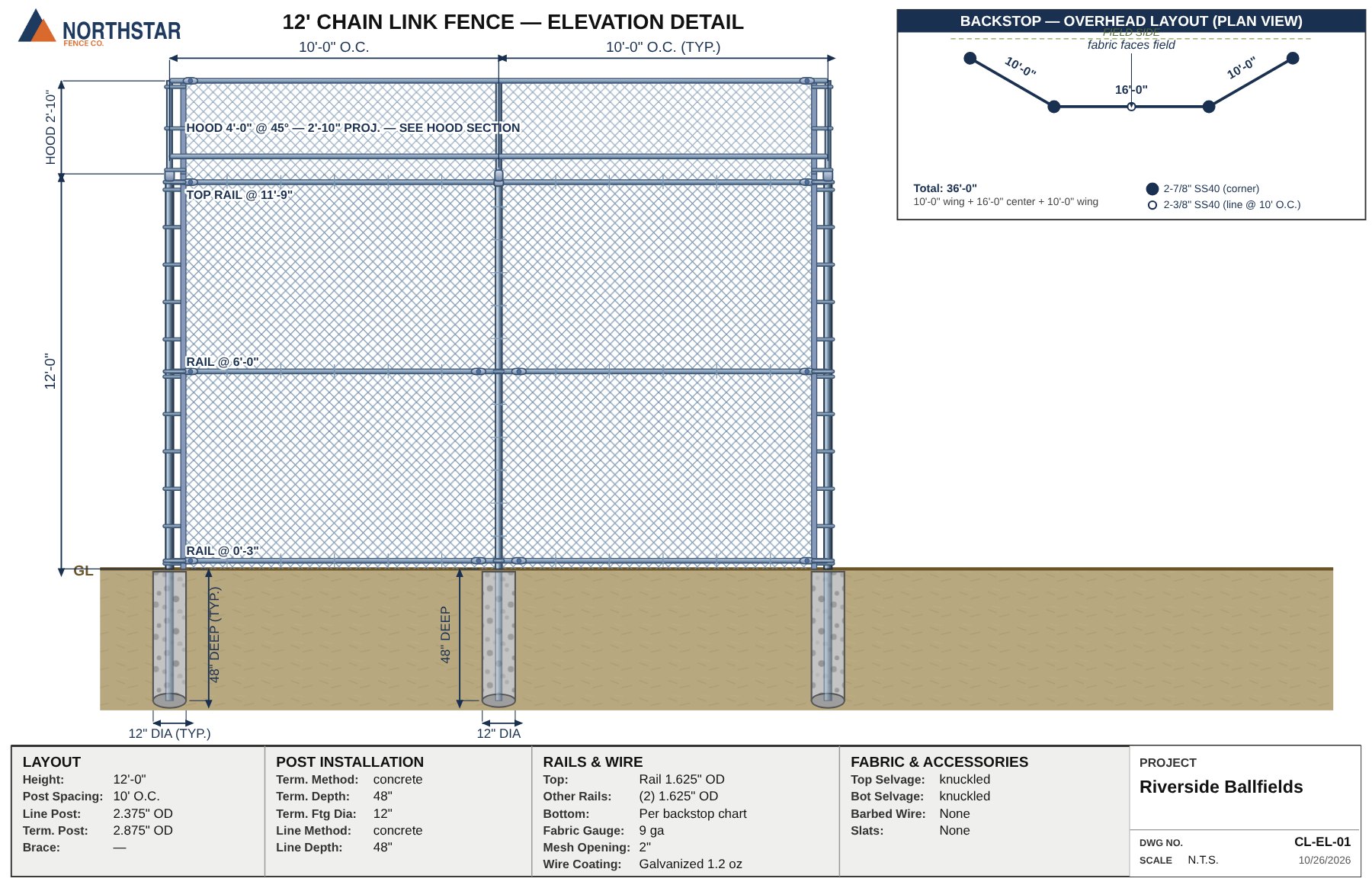

Single and double swing, cantilever slide and overhead track gates, plus baseball backstop plan views with wing angles and post layout.

Your brand on every sheet

Upload your logo and contact details once. They appear on the cover, every drawing and every notes page, and the logo links to your website.

Plan markup and LF takeoff

Drag the job PDF in, set the scale, trace fence runs and drop gate markers. Linear footage and gate counts flow straight into the project.

Ornamental library and manufacturer catalog

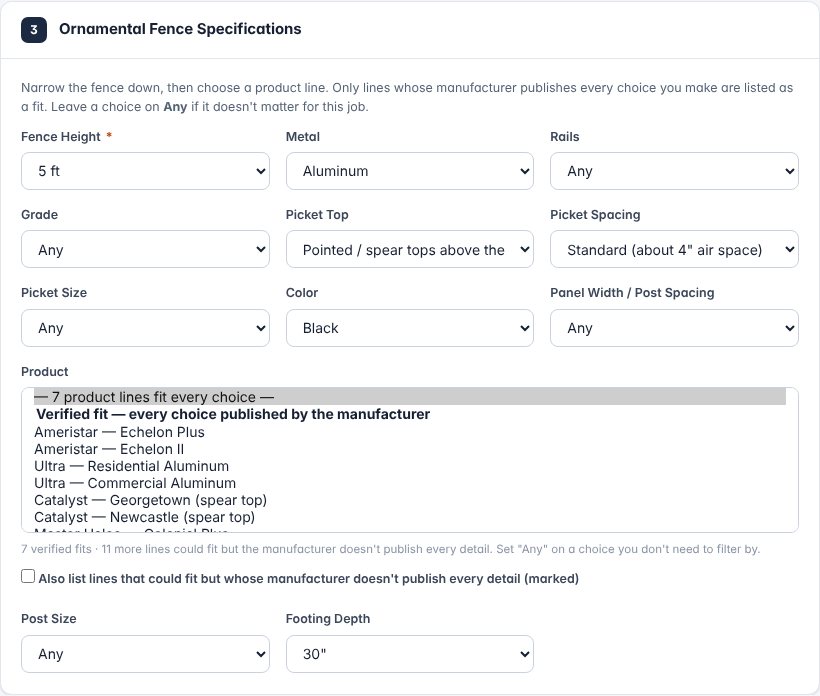

For ornamental fence, pick the height, metal, rails, picket top and spacing. Only manufacturer lines verified to fit are listed, and their exact panel detail and spec sheet drop into the set. Search the catalog and keep your own data sheets in the library too.

Nothing to install

Log in from the office or the truck. Updates arrive automatically, so every estimator is always on the current version.

SHEET A-2How it works

From bid to submittal in three steps

Set up your company once

Logo, colors, address, license number, default estimator and standard notes. Upload your spec sheets. Takes about ten minutes.

Configure the job

Choose the fence type and options. Drop in the site plan, set the scale and trace the runs. The footage and gate count fill in for you.

Download the set

One click builds the full PDF: cover sheet, elevations, gate and backstop details, marked-up layout, project notes and matching spec sheets.

SHEET A-3Layout markup

Measure the fence right off the plan

Mark up the GC's site plan the way you would in a PDF editor, with tools made for fence work.

  • Preset architectural and engineering scales, or calibrate from any known dimension
  • Fence-run tool totals linear feet per run and for the whole job
  • Numbered gate markers with opening widths and gate types
  • Text, note boxes, arrows, dimensions, shapes, pen and highlighter
  • Marked-up pages print into your submittal with your logo

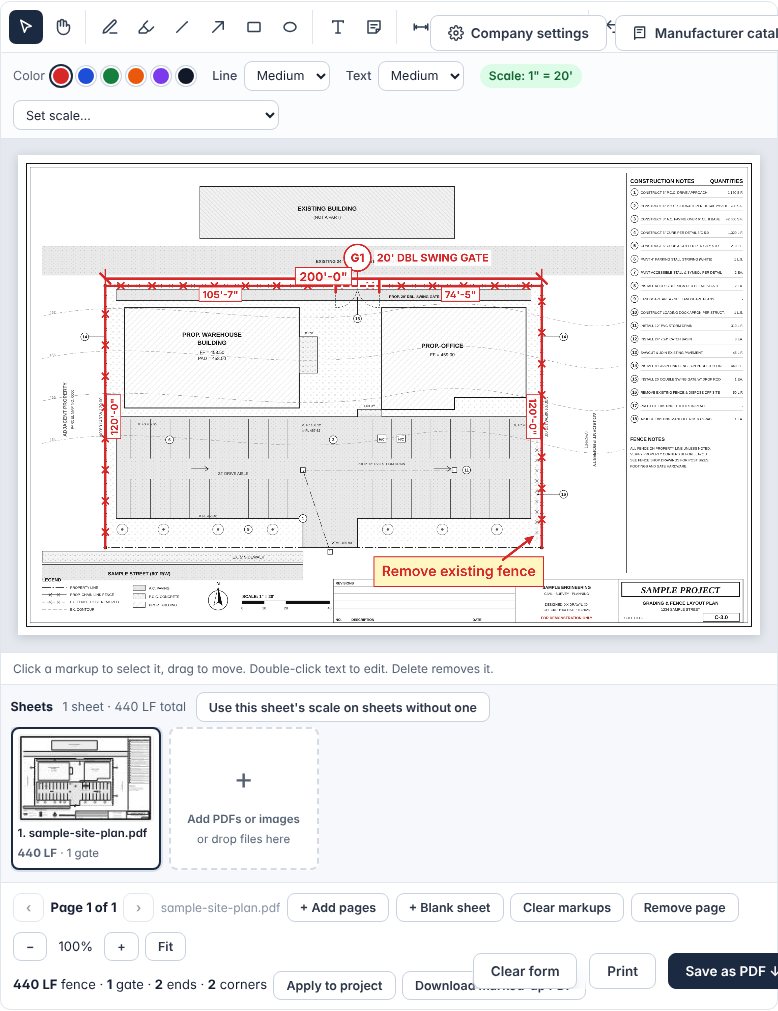

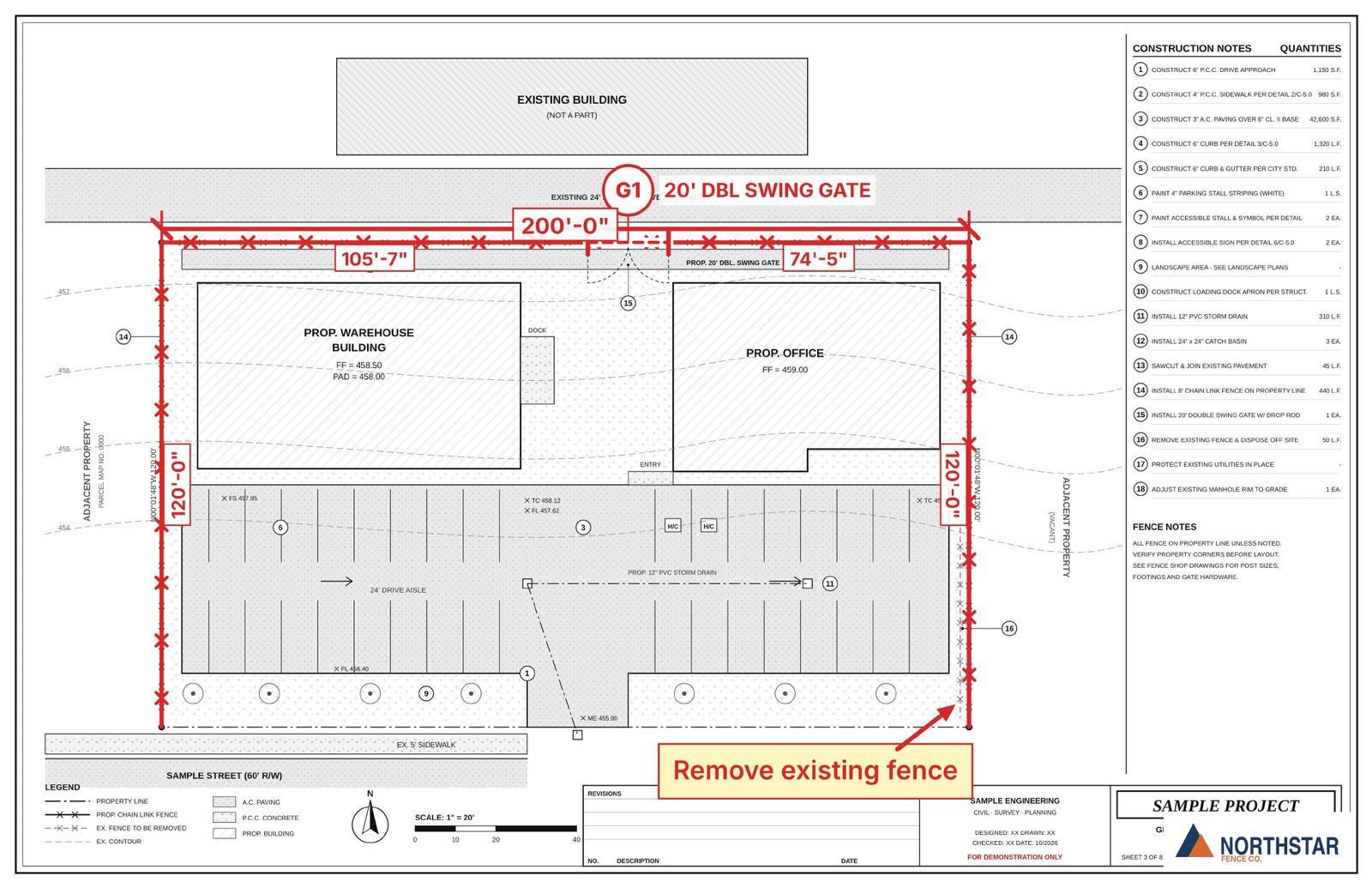

L-1 · SITE LAYOUT The markup tool showing a sample civil grading and fence layout plan at 1 inch = 20 feet, with a traced 440 linear foot perimeter fence, a 20-foot double swing gate marker and a note.
SHEET A-4Gate details

Gate details without the CAD seat

Opening width, swing or slide direction, frame and post sizes, hinges, latches and footings, drawn and labeled in a consistent title block.

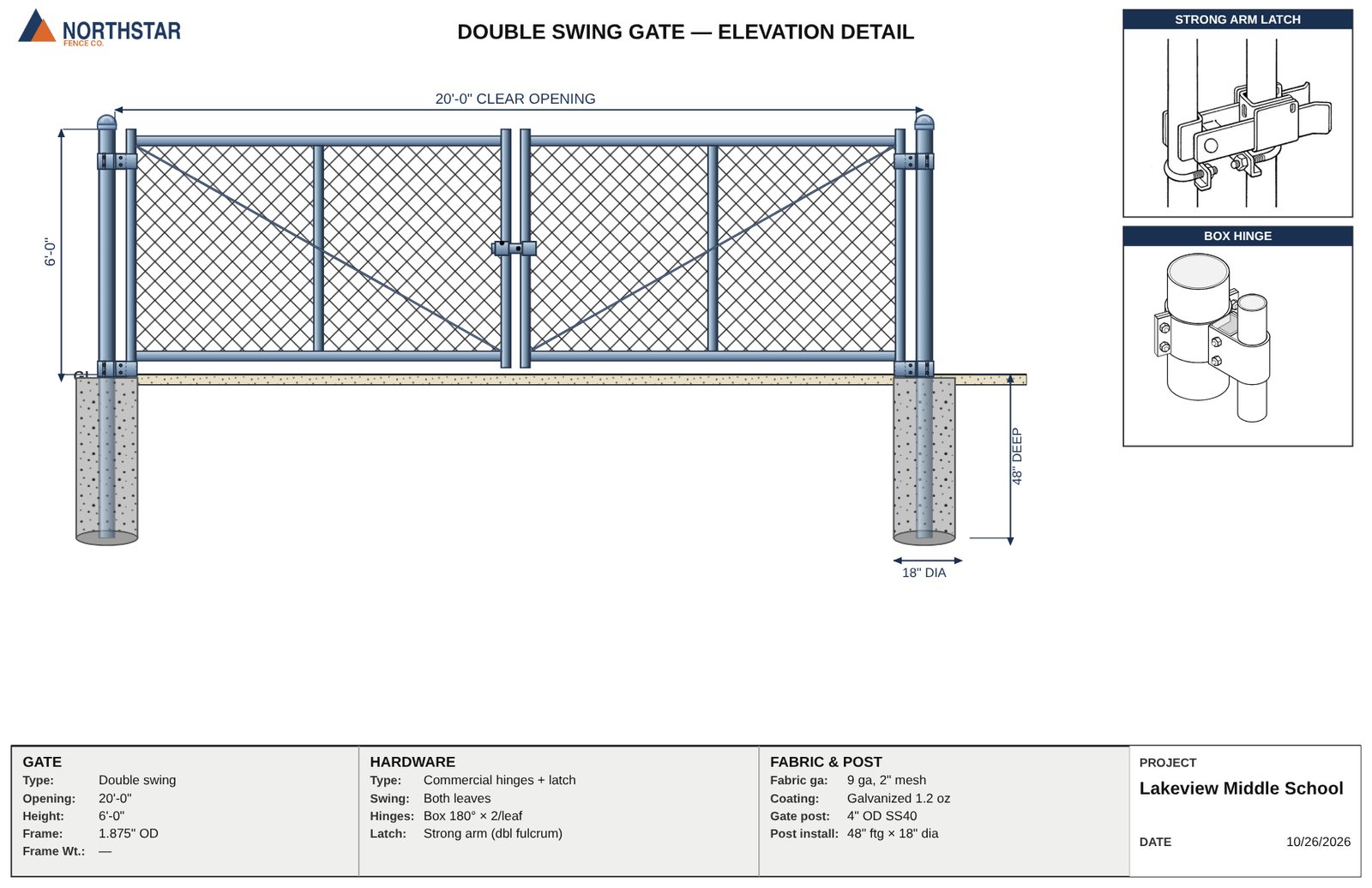

  • Single and double swing, cantilever and overhead track
  • Concrete, air-driven or plate-mounted posts with footing callouts
  • Box, bulldog or pin hinges; fork, double fulcrum (strong arm) or push bar exit latches

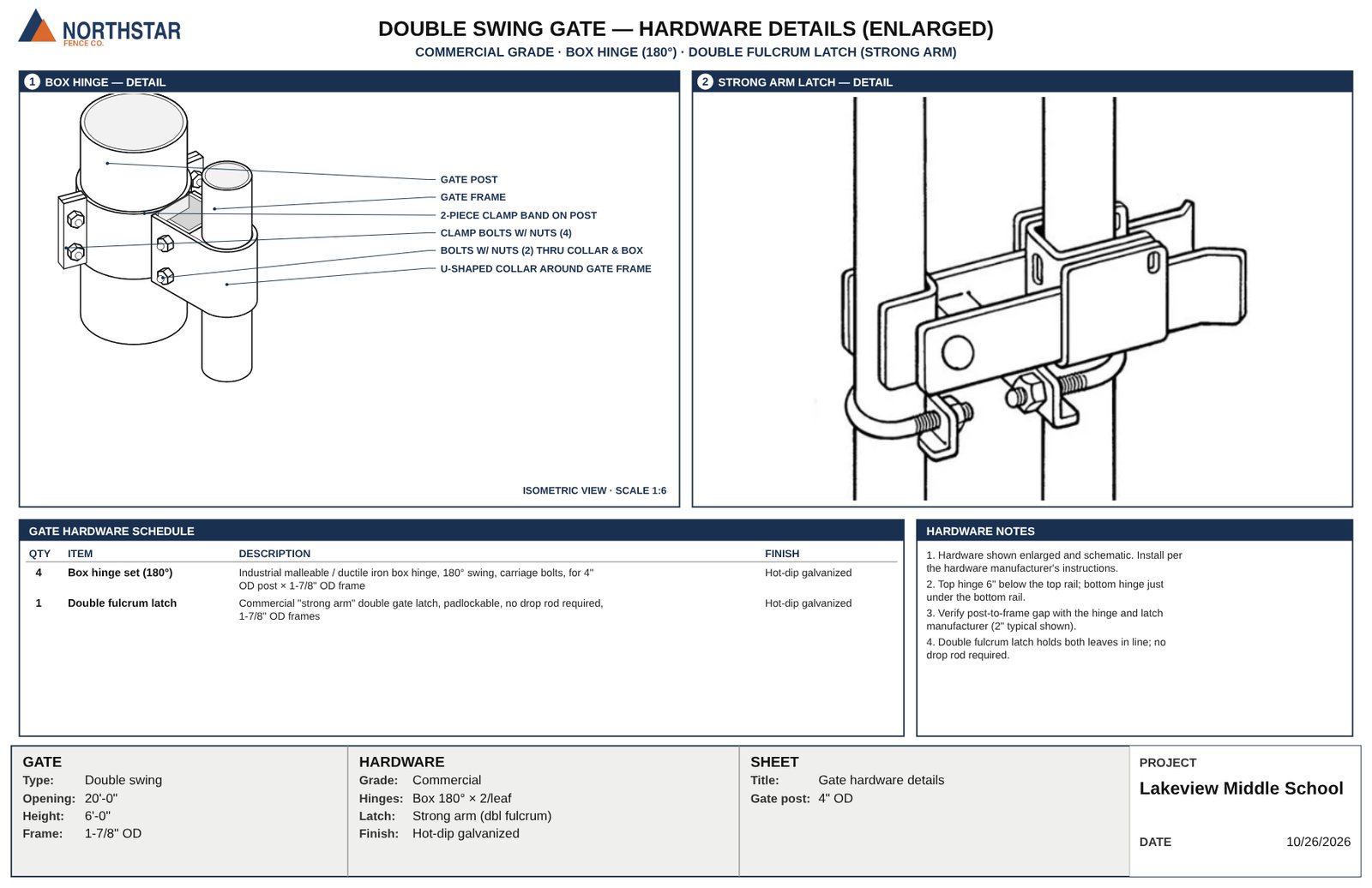

  • Enlarged hardware blow-ups plus a full gate hardware details sheet with schedule
CL-GT-01 · GATE A 20-foot single cantilever slide gate elevation detail with roller support posts, a 10-foot counterbalance tail, dimensions and a title block.
SHEET A-5Pricing

Simple pricing per company

Every plan includes every drawing feature; add Pro for the bill of materials. Try it free for 14 days, then pick monthly or annual. PDFs and downloads made during the trial carry a FREE TRIAL stamp, which goes away as soon as you subscribe.

Solo

One estimator or owner-operator.

$49/ month

Billed monthly. Cancel anytime.

  • 1 user login
  • Unlimited projects and PDF sets
  • All fence types, gates and backstops
  • Plan markup and LF takeoff
Start free trial
Most companies

Crew

Estimators, PMs and office staff.

$99/ month

Billed monthly. Cancel anytime.

  • Up to 5 user logins
  • Everything in Solo
  • Shared company branding and spec library setup help
  • Priority email support
Start free trial
PRO

Fence Architect Pro: add the bill of materials

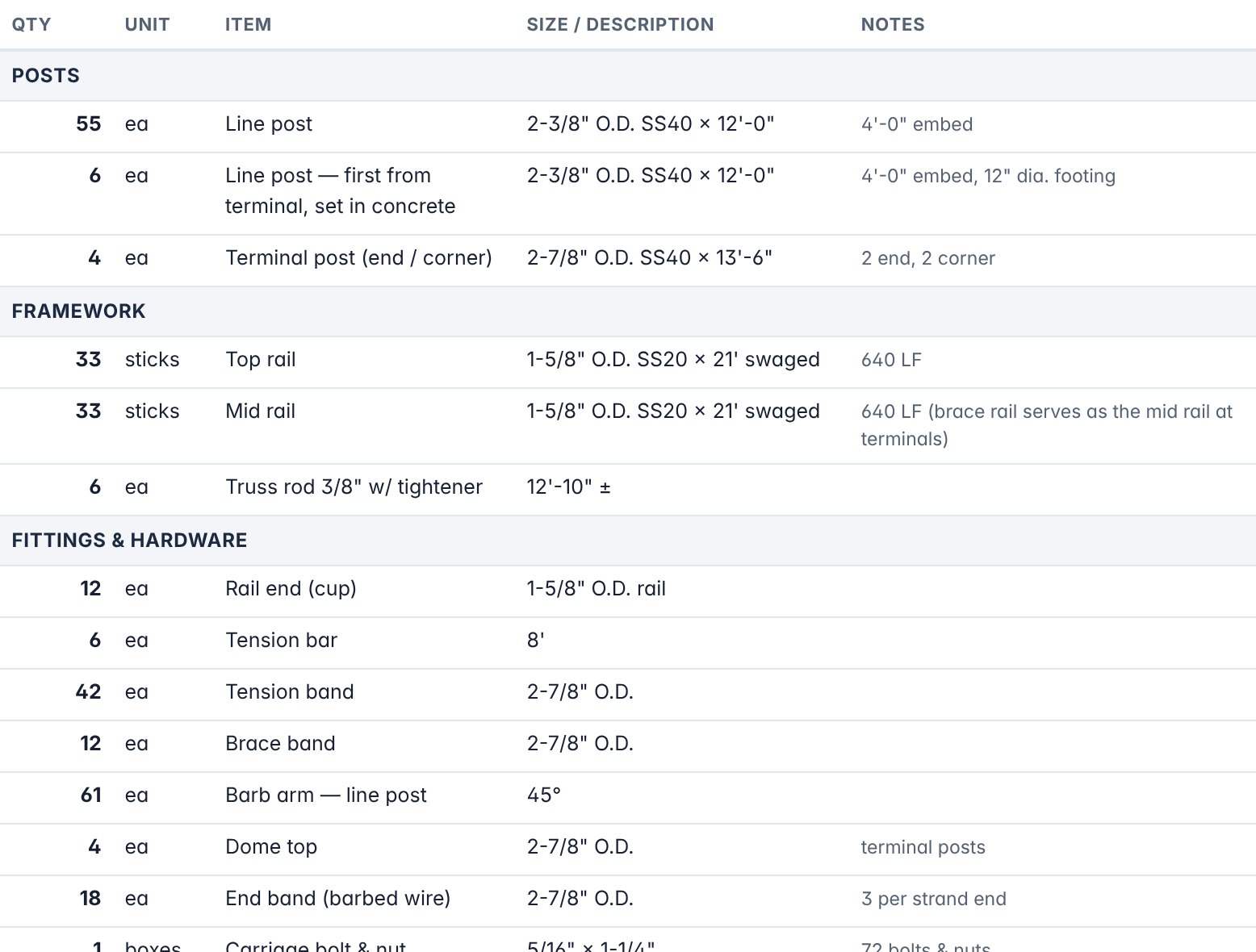

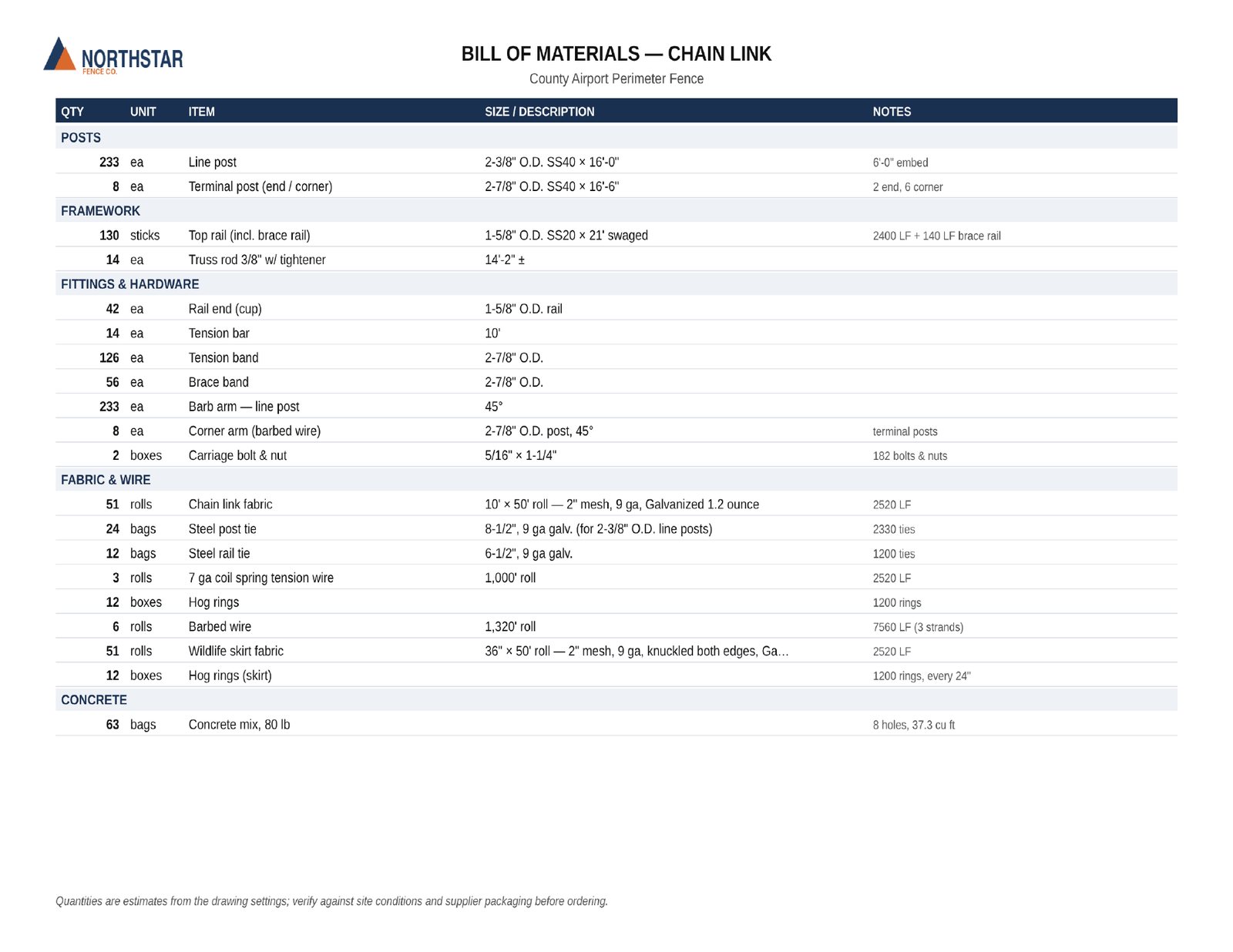

Every drawing also builds a complete, ready-to-order materials list (posts, framework, fittings, fabric and wire, gates and concrete), download it as a CSV file (opens in Excel or Google Sheets) or add it to the PDF set. Pro also lets you load every sheet of a big job into the job site layout (drop in several PDFs at once) and take off footage across all of them. Your free trial includes Pro.

Solo Pro

Solo + bill of materials (+$19.99/mo).

$68.99/ month

Billed monthly. Cancel anytime.

Start free trial

Crew Pro

Crew + bill of materials (+$49.99/mo).

$148.99/ month

Billed monthly. Cancel anytime.

Start free trial

Already subscribed? Switch your plan to Solo Pro or Crew Pro under Manage my account.

SHEET A-6FAQ

Questions from fence contractors

Do I need to install anything?

No. Log in from Chrome or Edge on any Windows or Mac computer. Updates happen automatically.

Are the drawings to scale?

Elevation, gate and backstop details are schematic (N.T.S.) and fully dimensioned, which is the usual standard for fence submittals. The layout markup tool measures to scale once you set the plan scale.

Is there a product catalog?

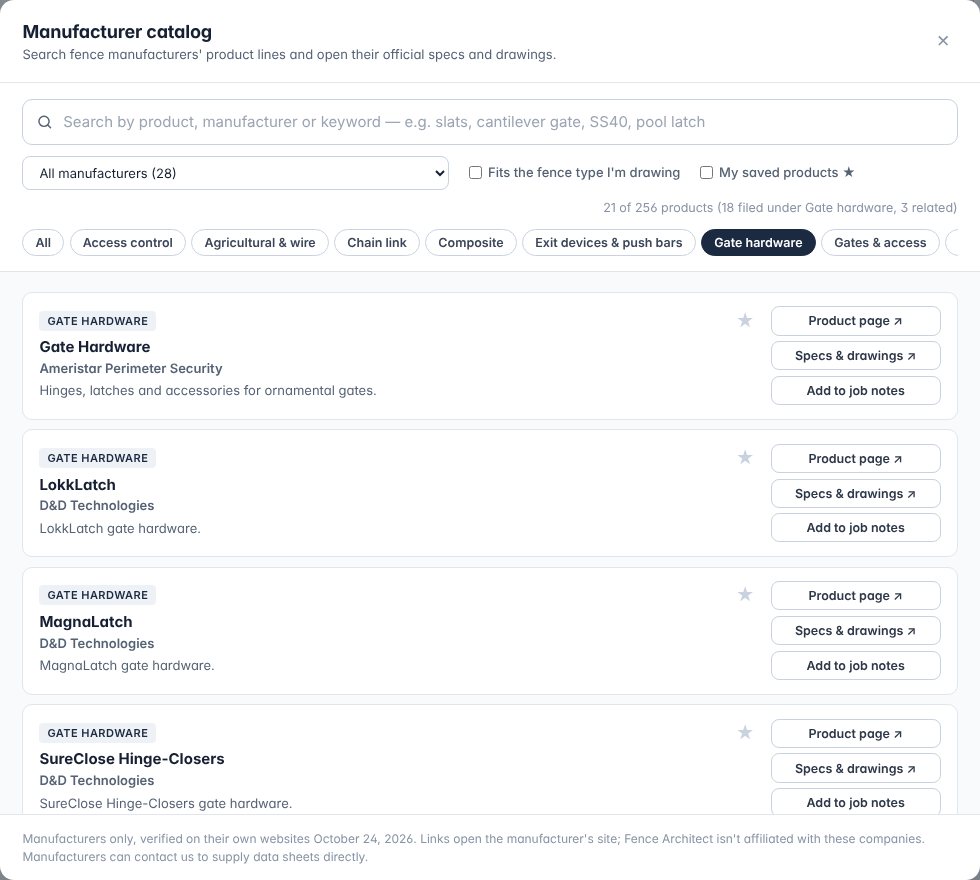

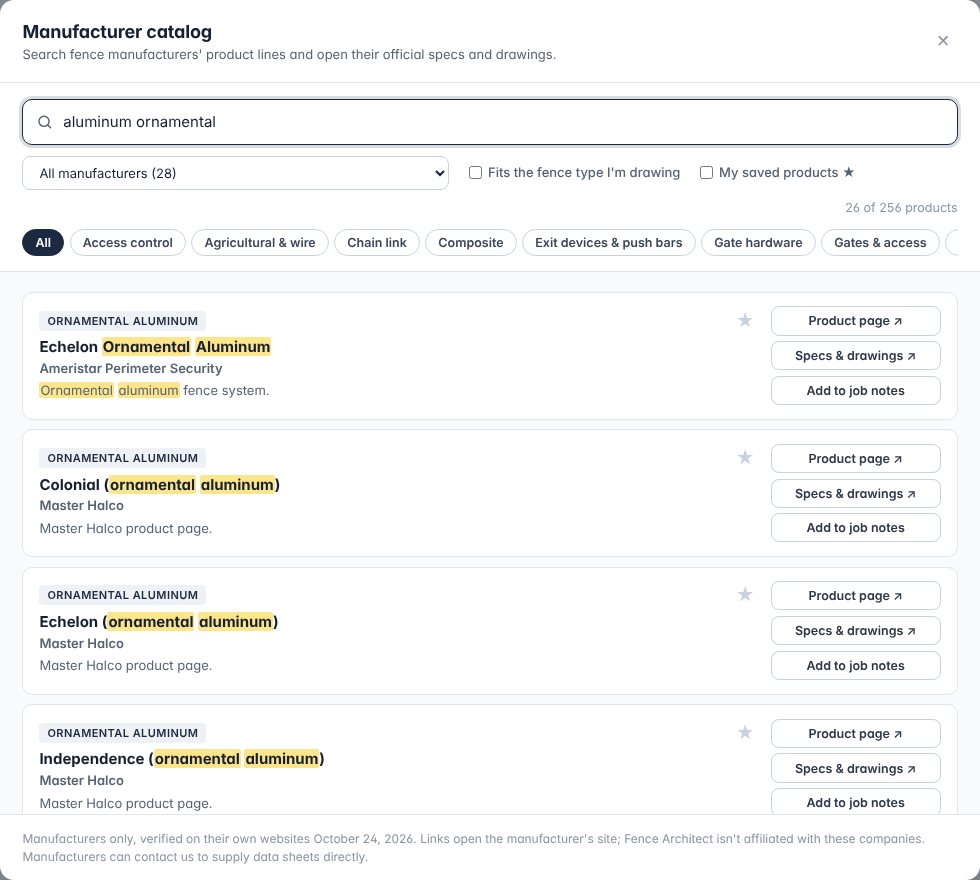

Yes. Search fence manufacturers' product lines by product name or keyword, open their official specs and drawings, save the products you use, and add them to job notes. The catalog lists manufacturers only, never installers.

Can I use my own spec sheets and cut sheets?

Yes. Upload PDFs or images for each item (Schedule 40 and SS40 pipe, vinyl fabric, galvanized wire, slats, safety cap, steel posts, latch details). Each is added to the PDF only when that option is selected.

Where is my company information stored?

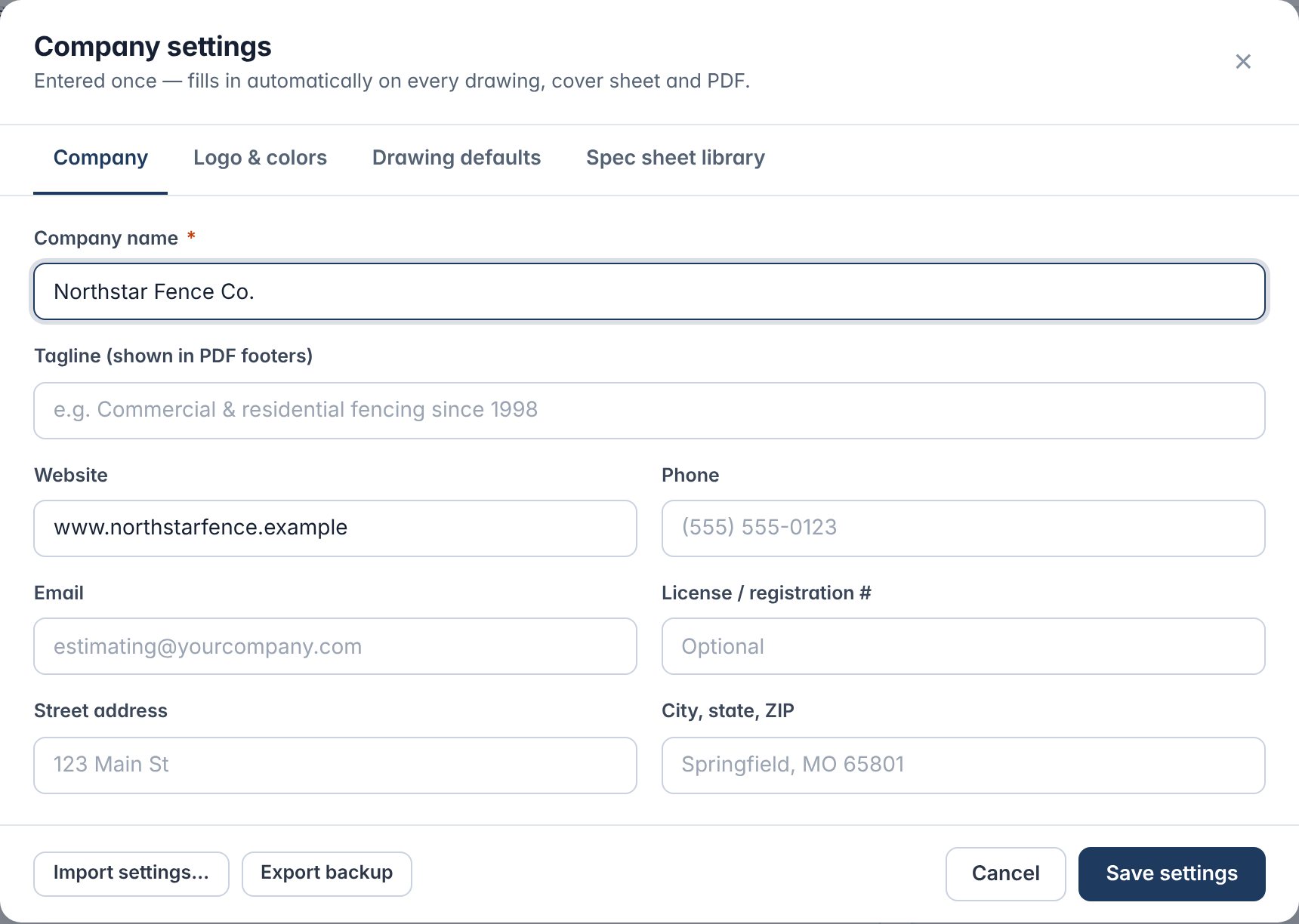

Your logo, colors, contact details and spec library are saved in your browser. Use Export backup in Company settings to keep a copy or move it to another computer.

Can more than one person use it?

The Crew plan includes up to five user logins for the same company. Need more? Email us for a company plan.

How do I cancel?

Open Account inside the app and cancel any time. You keep access until the end of the period you paid for.

Your next submittal, done before lunch

Start the free trial and build your first full set today.

Start free trial Log in
